Double Stage Sliding Vane Rotary Vacuum Pump (2X-4, 2X-8, 2X-15, 2X-30, 2X-70) , Liquid (water) Ring Vacuum Pump, Oil-Free Vertical Piston Vacuum Pump
Product Introduction
The implementation of internationalization usually starts from the entry of Small Vacuum Packing Machine, Pcb Vacuum Packaging Machine, Automatic Thermoforming Vacuum Packaging Machine into the international market, that is, the implementation of international marketing mix strategy is the first step in the implementation of enterprise internationalization strategy. Throughout the expansion, we have remained focused on our core philosophy that creativity and quality design together with a rapid response to market demands will yield profitable results. We follow the law of enterprise development, deepen the lean management concept, and continue to promote management innovation.
Main Features:
1. To increase the amount of the pumping gas and to improve the vacuum degree, please combine with Roots pumps to form a unit for this.
2. If pumping moist air or condensable gas, the condenser can be installed before the vacuum pump and the gas ballast valve is installed on the vacuum pump.
3. If pumping the gases containing dust particles, the dust filters can be installed in front of the vacuum pump.
4. If pumping the corrosive gases, the corrosion-proof gas filter can be installed in front of the vacuum pump.
Applications:
1. Packaging & Pasting
2. Lifting, transporting, suctioning, loading and unloading
3. Drying, degassing, impregnating
4. Other:
Laboratory device;
Medical device, medical system, the central vacuum system, moving the vacuum station, etc;
Recycling of Freon;
Vacuum heat treatment.
Main Specifications:
Parameter Model | XD-020 | XD-040 | XD-063 | XD-100 | XD-160 | XD-202 | XD-250 | XD-302 |
Pumping rate (m³/h) | 20 | 40 | 63 | 100 | 160 | 202 | 250 | 302 |
Pressure Limit (mbar) | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.1~0.5 | 0.5 | 0.1 | 0.1 | 0.1 |
MotorPower (KW) | 0.75 (single phase0.9Kw | 1.5 | 2.2 | 3 | 4.5 | 4.5 | 5.5 | 7.5 |
Motor Speed (r/min) | 2880 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
Noise (db) | ≤62 | ≤65 | ≤65 | ≤67 | ≤70 | ≤72 | ≤73 | ≤75 |
Allowable steam pressure (mbar) | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Working water steam (Kg/h) | 0.3 | 0.3 | 1 | 1.6 | 2.5 | 4 | 4.5 | 5 |
Working temperature (ºC) | 82 | 80 | 80 | 84 | 95 | 95 | 81 | 83 |
Oil volume (L) | 0.5 | 1 | 2 | 2 | 5 | 5 | 7 | 7 |
Weight (kg) | 13 | 40 | 65 | 78 | 140 | 140 | 185 | 201 |
Air intake thread | Rp3/4" | Rp11/4" | Rp11/4" | Rp11/4" | Rp2" | Rp2" | Rp2" | Rp2" |
Overall dimensions L*W*H | 650*300*280 | 650*300*280 | 650*430*295 | 720*430*295 | 850*505*440 | 850*505*440 | 980*560*440 | 1010*560*440 |

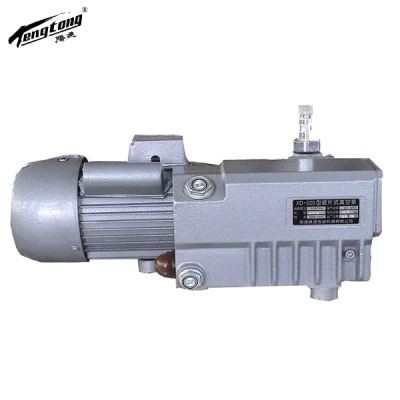

Pictures:
We constantly develop Double Stage Sliding Vane Rotary Vacuum Pump (2X-4, 2X-8, 2X-15, 2X-30, 2X-70) , Liquid (water) Ring Vacuum Pump, Oil-Free Vertical Piston Vacuum Pump of different grades and prices to meet the needs of buyers with different demands. Time have witnessed our unremitting efforts, as well as achieved our leading position in the industry! Talents are the key to our company's development, and we insist on the pursuit of the concept of common progress of all employees in both material and spiritual aspects.
