Description

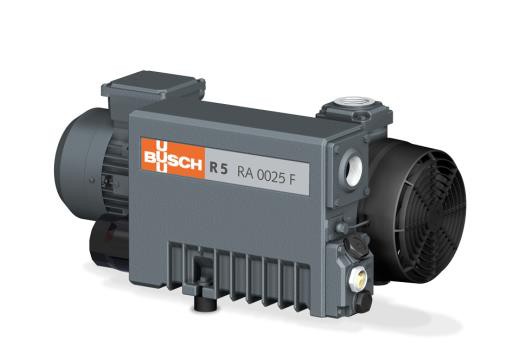

Vacuum pumps such as the R 5 range generate waste heat that can negatively affect production and processing rooms or air-conditioning systems. The waste heat can be drastically reduced and utilised. An oil/water heat exchanger on an R 5 rotary vane vacuum pump can significantly reduce waste heat and reduce energy costs. The heat exchanger can be used to generate warm water used during operation. R5 rotary vane vacuum pumps can be retrofitted with heat exchangers.

These pumps are the industry standard due to their robustness and operational reliability in tough industrial applications. Safe and cost-effective, rotary vane vacuum pumps are known for their modern and energy-efficient vacuum generation. The rotary vane technology operates using a technically simple structure of the vacuum pumps. The consistently high vacuum level in continuous operation is provided through circulating oil lubrication, well-coordinated materials and state-of-the-art precise manufacturing. The standard oil separator ensures clean and oil-free exhaust due to its sophisticated extractor system with an integrated oil return. When fitted with an optional gas ballast valve, even large amounts of vapor can be processed. A non-return valve in the inlet flange prevents air from flowing back into the vacuum chamber when the vacuum pump is switched off.

Pictures:

3 (2)
